Name: Stable Power Supply Electro Optical Tracking System With High Tracking Accuracy
Brand: Wuhan JOHO Technology Co., Ltd
SKU: JH120
Price: Negotiable USD
Availability: InStock

Home Products Electro Optical Tracking System

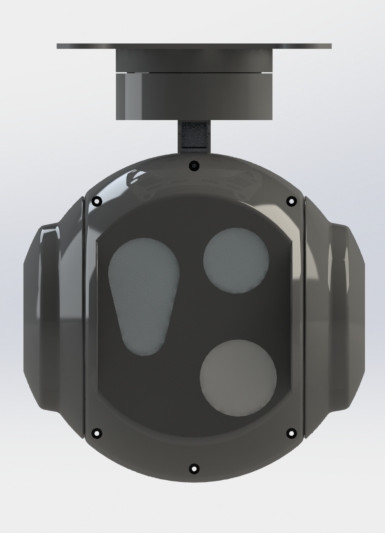

Stable Power Supply Electro Optical Tracking System With High Tracking Accuracy

Product Details:

Place of Origin:	China
Brand Name:	Joho
Model Number:	JH120

Contact Now

Detailed Product Description

Application:	Tracking And Searching	Gyro Stabilization:	3-axis
Detector:	Uncooled FPA	Azimuth:	-160°~+160°
Wavelength:	905nm	Range:	5~1500m
Weight:	≤750g	FOV:	22°×17.6°
Highlight:	3axis Electro Optical Tracking System , Electro Optical Uncooled FPA Tracking System , 905nm Electro Optical Tracking System

Product Description:

The Electro Optical Tracking System (EO/IR Pod) is a highly accurate, wide-range tracking system designed with long-term reliability and stability in mind. It is designed to track targets in a variety of environments, including land, sea and air. With its advanced electro-optical technology, the system can detect and track targets accurately and efficiently.

Features:

High resolution daylight camera with 10.5× continuous zoom
Uncooled IR camera with 25mm lens
1.5km laser range finder
Manual/auto tracking
Small size and light weight(only 750g)

Technical Parameters:

SYSTEM PARAMETER
Gyro stabilization	3-axis
Range	Azimuth:-160°~+160°
	Elevation:-20°~+110°
	Roll:-30°~+30°
Max. angular speed	≥30°/s
Stabilization accuracy	≤1mrad
IP grade	IP66
External interface	Power supply:DC12V
	Communication:TTL/RS232
	Video:HDMI/MB Ethernet
IR CAMERA
Detector	Uncooled FPA
Resolution	640×512
Pixel size	12μm×12μm
Spectral band	8μm~14μm
Focal length	25mm
FOV	22°×17.6°
DAYLIGHT CAMERA
Sensor	Colored CMOS
Resolution	1920×1080
Optical zoom	10.5 ×
Focal length	3.2~33.6mm
HFOV	62°~ 6.5°
LASER RANGE FINDER
Wavelength	905nm
Divergence angle	10mrad
Range	5~1500m
Accuracy	±5m
PHYSICAL PARAMETER
Dimension	Φ120mm×168mm
Weight	≤750g
Color	black
ENVIRONMENTAL PARAMETER
Operating temperature	-20ºC~+55ºC
Storage temperature	-30ºC~+65ºC

Applications:

The electro optical tracking system is designed for use in harsh conditions and difficult terrains, allowing for accurate tracking of objects at a distance. It is ideal for surveillance, border control, and law enforcement applications, as it offers superior tracking accuracy and a user-friendly interface. It can also be used in security and defense applications, where it can be used to detect and monitor suspicious activities.

The system is highly efficient and reliable, with low maintenance costs. It is also designed for easy installation and can be quickly deployed in any environment. The long term warranty ensures that users can trust in the system's performance and reliability.

Support and Services:

Electro Optical Tracking System (EOTS) Technical Support and Services include:

Software and hardware installation assistance
Troubleshooting and diagnostic assistance
Support for firmware and software updates
Online and telephone technical support
On-site repair and maintenance services

Packing and Shipping:

Electro Optical Tracking System is packaged and shipped in the following manner:

Product components are individually bubble-wrapped and sealed in plastic bags.
The components are then securely placed into a cardboard box for shipping.
The box is also filled with packing material to ensure product safety during transit.
The package is then sent via a trusted courier service.

Company Profile:

Wuhan JOHO Technology Co., Ltd founded in 2009, is a high-technology company based on infrared thermal imaging technology. Joho has built a complete infrared industrial chain from the bottom up: from core component to comprehensive electro optical infrared surveillance and tracking system.We have two R & D base in Hubei Zhongxiang and Wuhan City, well-known institutions of higher learning and research institutions at home and abroad.

Stable Power Supply Electro Optical Tracking System With High Tracking Accuracy 0

Customer Distribution:

Stable Power Supply Electro Optical Tracking System With High Tracking Accuracy 4

Products:

Our products includes thermal security cameras, electro-optics/infrared search and track system (EO/IR search and track system) and EO surveillance system, surveillance radar, laser range finder, fiber optical gyro, special power sources (thermal battery and silver-zinc battery Ag-zn battery) and OEM solutions,Personalized products and services to provide customers with a significant advantage. Due to the high quality of our products and reliable performance, Joho products are widely used in different applications, security and surveillance, law enforcement, maritime patrol, fishery administration, surveying and mapping and so on.

Stable Power Supply Electro Optical Tracking System With High Tracking Accuracy 5
