WUHAN JOHO TECHNOLOGY CO., LTD
Electro-optical Infrared Products Manufacturer
 |
| Place of Origin: | China |
| Brand Name: | JOHO |
| Certification: | CE,SGS |
| Model Number: | JH513-B |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Security Equipment Case |
| Delivery Time: | 15days after received payment |
| Payment Terms: | T/T |
| Supply Ability: | 1000Sets/Year |
| Classification: | Imaging Diagnostic Equipment | Type: | Human-Body Temperature Checking IR Thermal Camera |
|---|---|---|---|
| Certification: | CE, SGS | Applications: | Diagnosis The Diabetes, Arthritis, Breast Cancer |
| Detection Range: | 0.5m ~8m | ||
| Highlight: | infrared thermal imaging camera,long range thermal imaging camera |
||
Human-body Temperature Checking Infrared Imaging Thermal Camera Thermometer
Introduction

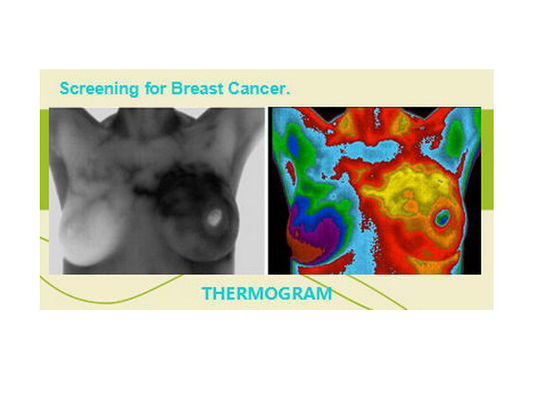

JH513-B Imaging Diagnostic Human-body Temperature Checking Infrared Thermal Camera is a new innovation in medical treatment, diagnosis the diabetes, arthritis, breast cancer etc just by scanning and do not radiate hazardous substance to human. High accuracy, powerful function and professional analysis software, JH513-B reports doctor professional inspection result. In addition, thanks for its non-contact and large area temperature measurement, it has been widely installed in hospital, clinics. It also has been successfully integrated into new generation thermal texture maps system for breast diagnosis, head &face, thyroid, Chest & abdomen, back, lower forelimb /lower hindlimb, Left & Right Lateral, pelvic diagnosis.
FEATURES
Technical Parameters
| Detector | |
| Detector type | Uncooled FPA |
| Response spectral | 8~14μm |
| Pixel | 336X256, 17μmx17μm |
| Image Performance | |
| Lens | 28.6mm (F/1.2), motorized |
| NETD | 50mK@30 ℃ |
| Frame rate | 25Hz |
| Image Presentation | |
| Palette | 10 (Medical, Grey, Iron, Iron 10, Gradient, Midyellow, Midgreen, Rainbow, Midgray, Inverted gray) |
| Zoom | 2X digital zoom |
| Measurement | |
| Temperature range | 0℃~+60℃ (able to be customized) |
| Alarming Temperature Range | 25℃~45℃(able to be customized) |
| Temperature accuracy | 0.5℃ |
| Storage | |
| Storage medium | PC |
| Image/ Video Format | BMP/IRM |
| Ambient Parameters | |
| Operation temperature | -20℃~+60℃ |
| Storage temperature | -20℃ ~+60℃ |
| Interface | |
| Customized interface | Ethernet |
| Physical Parameters | |
| Dimension | 125(L)× 95(W) × 160(H)mm |
| Weight | 1.2Kg |
| Color | Black |
